Aquacare is a versatile air abrasion too for dental professionals. I joined Medivance Instruments at the early stages of this project, and I was tasked with bringing it to life. Below are some highlights from along the path to completion

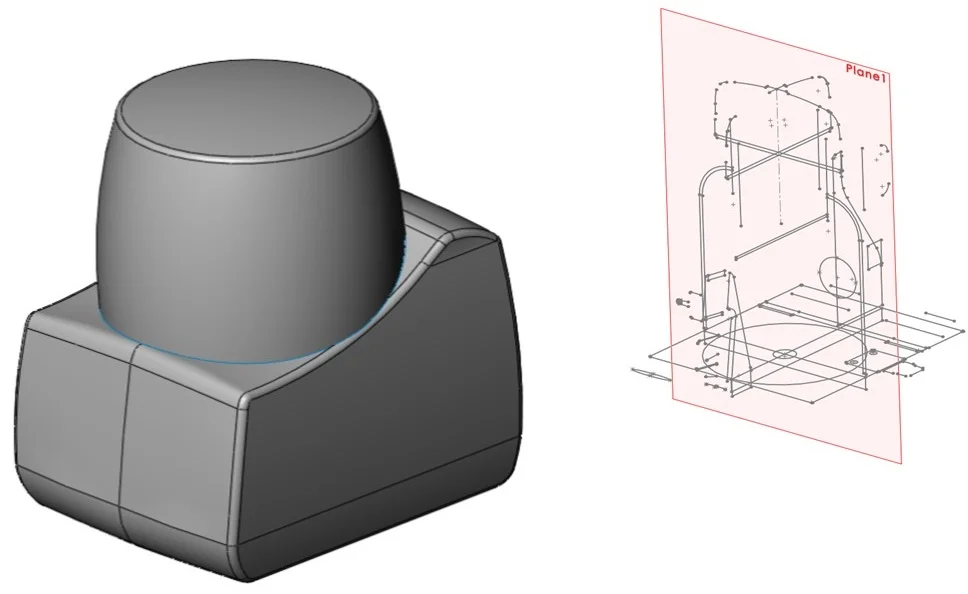

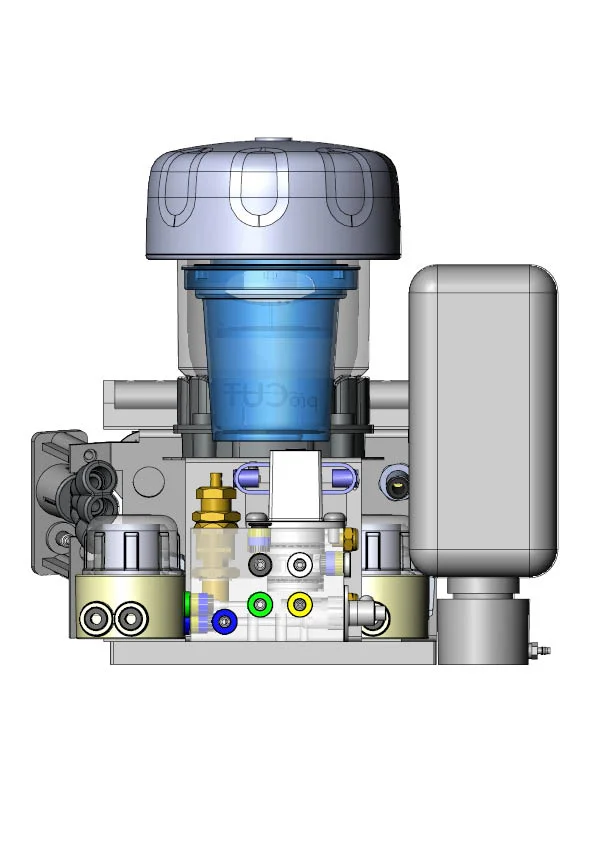

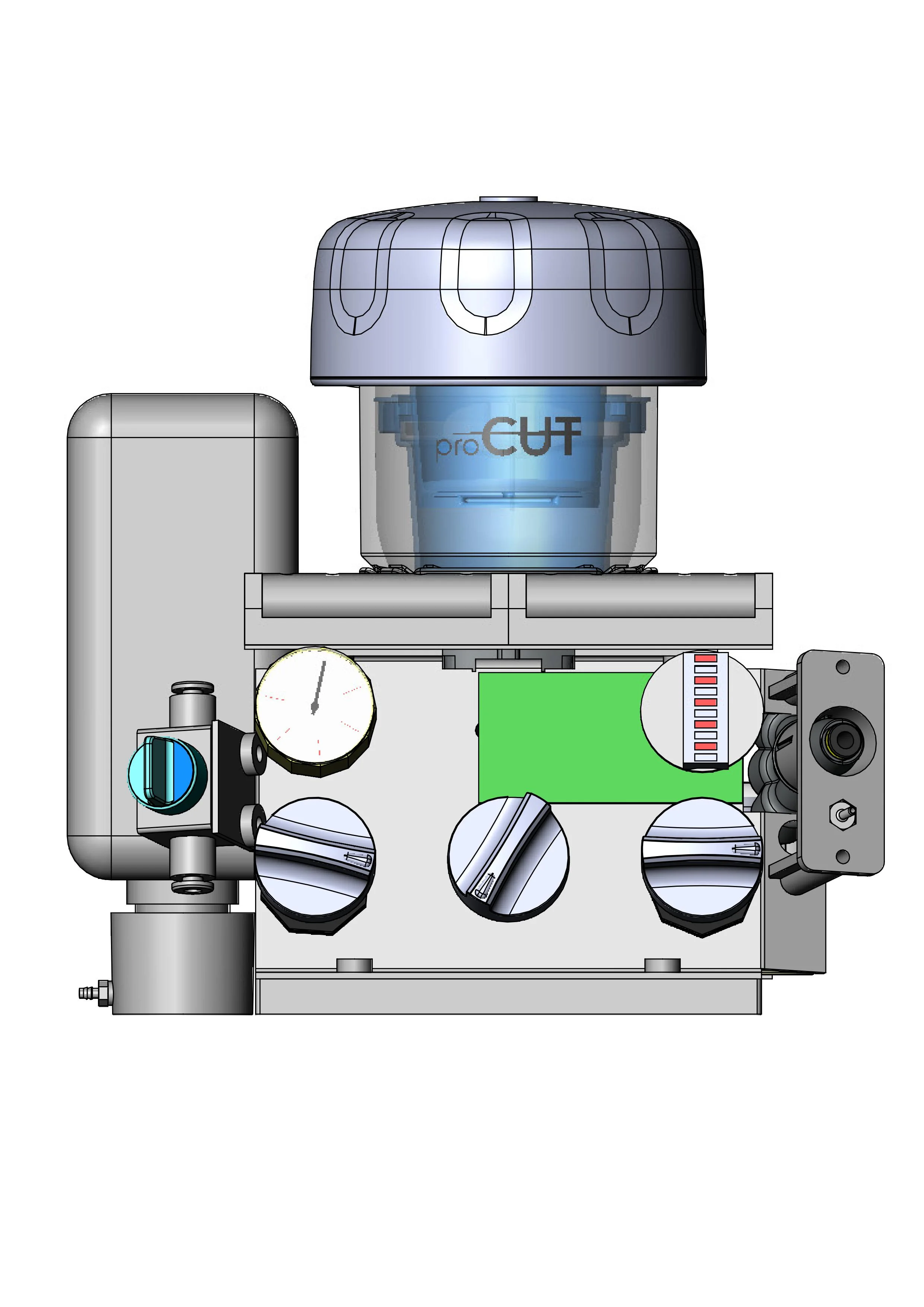

Some very crude and early CAD models to get a seance of direction

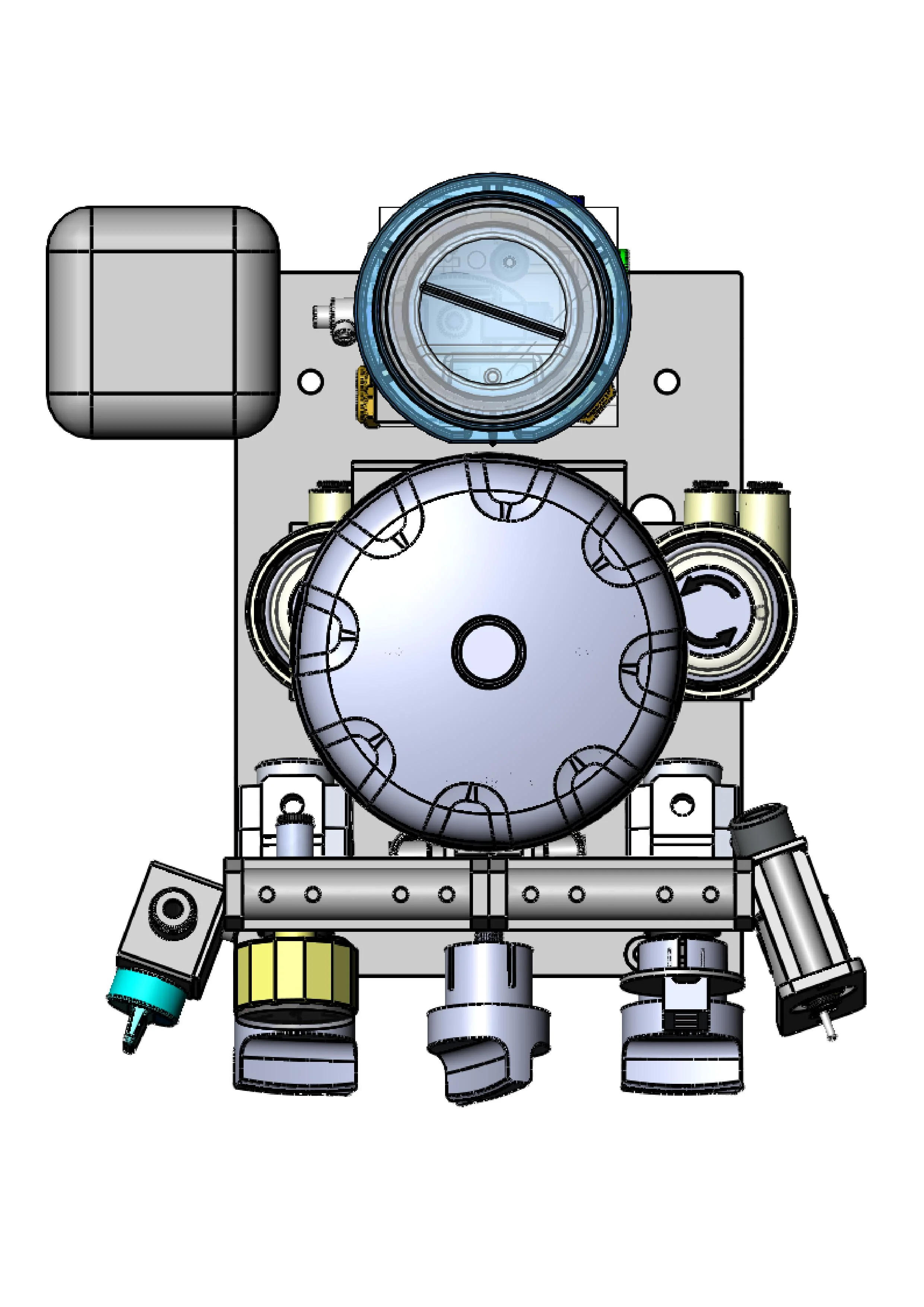

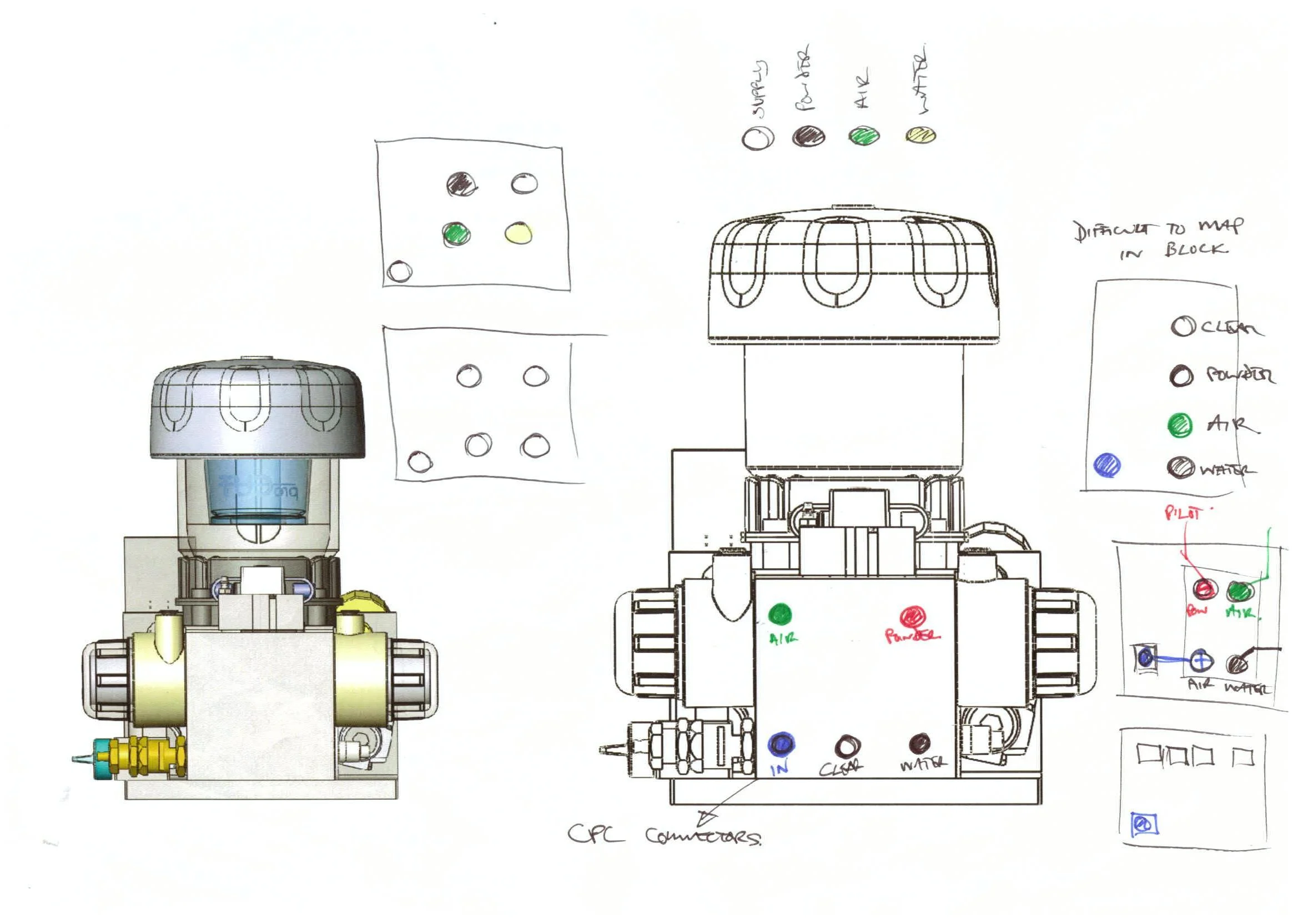

Variations in component layout

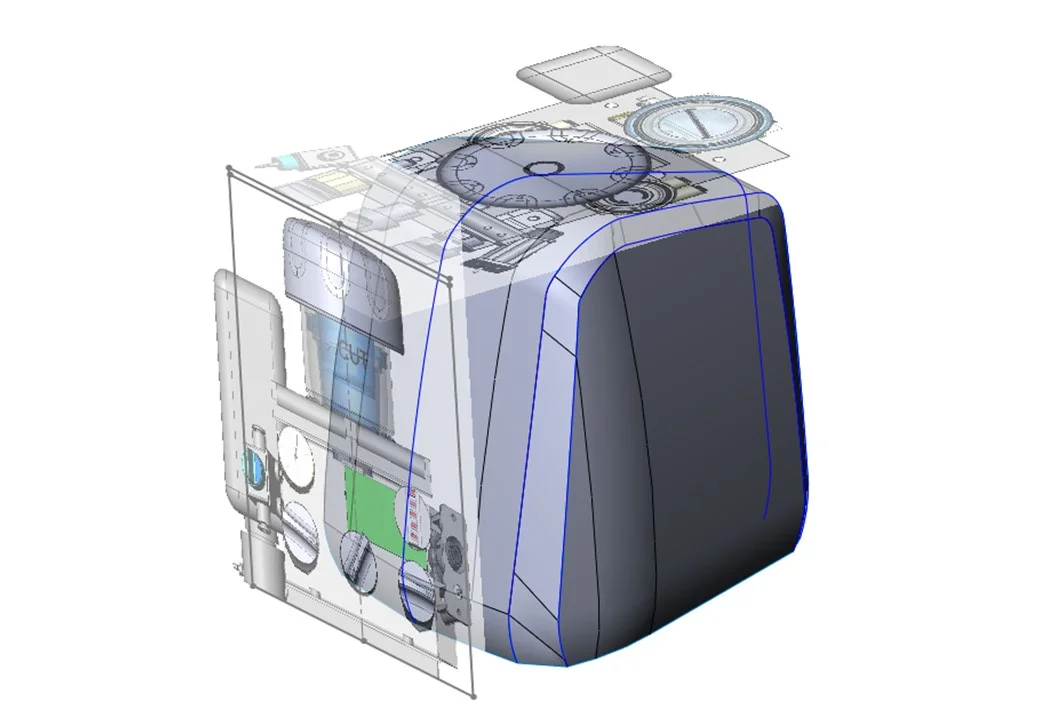

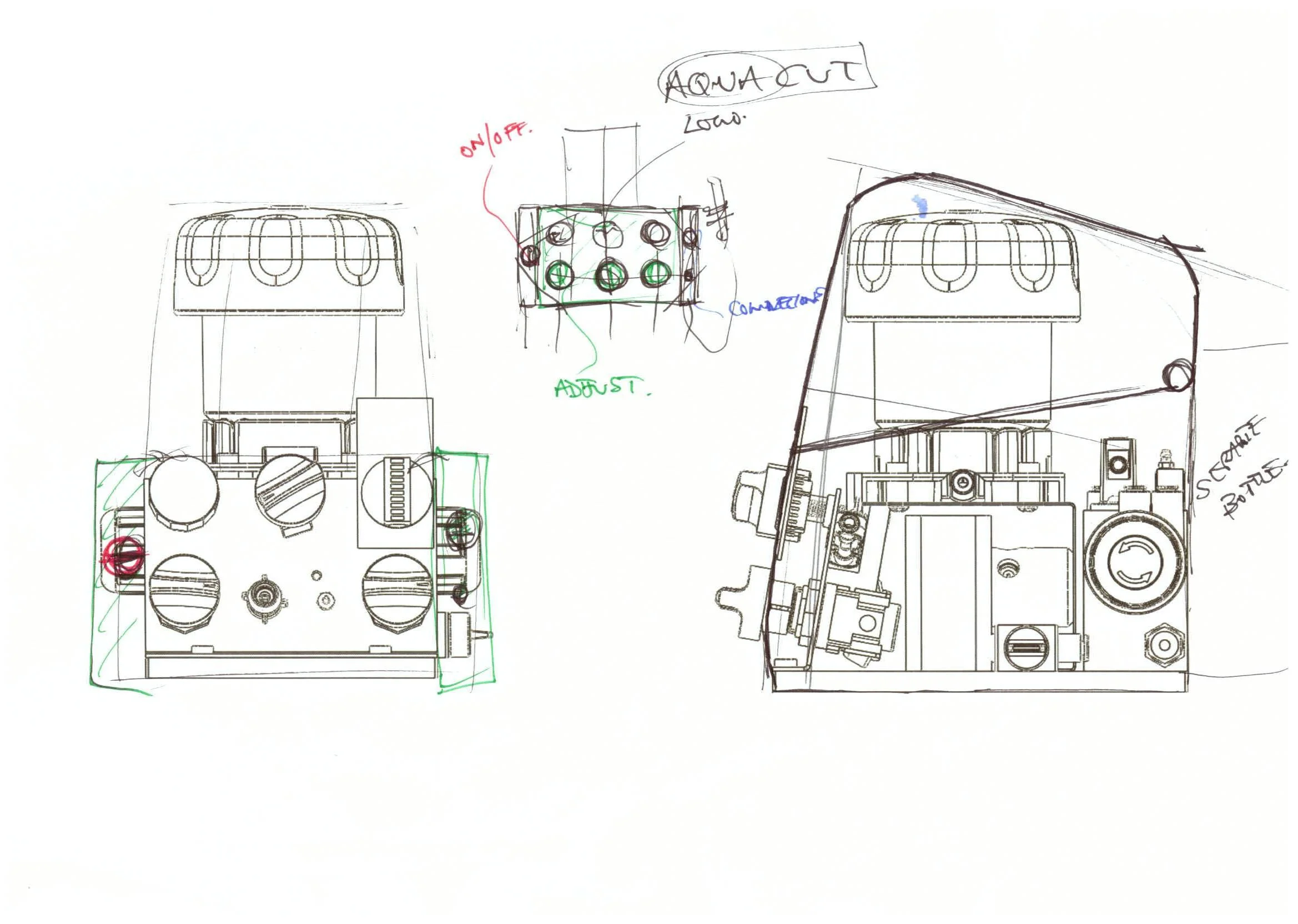

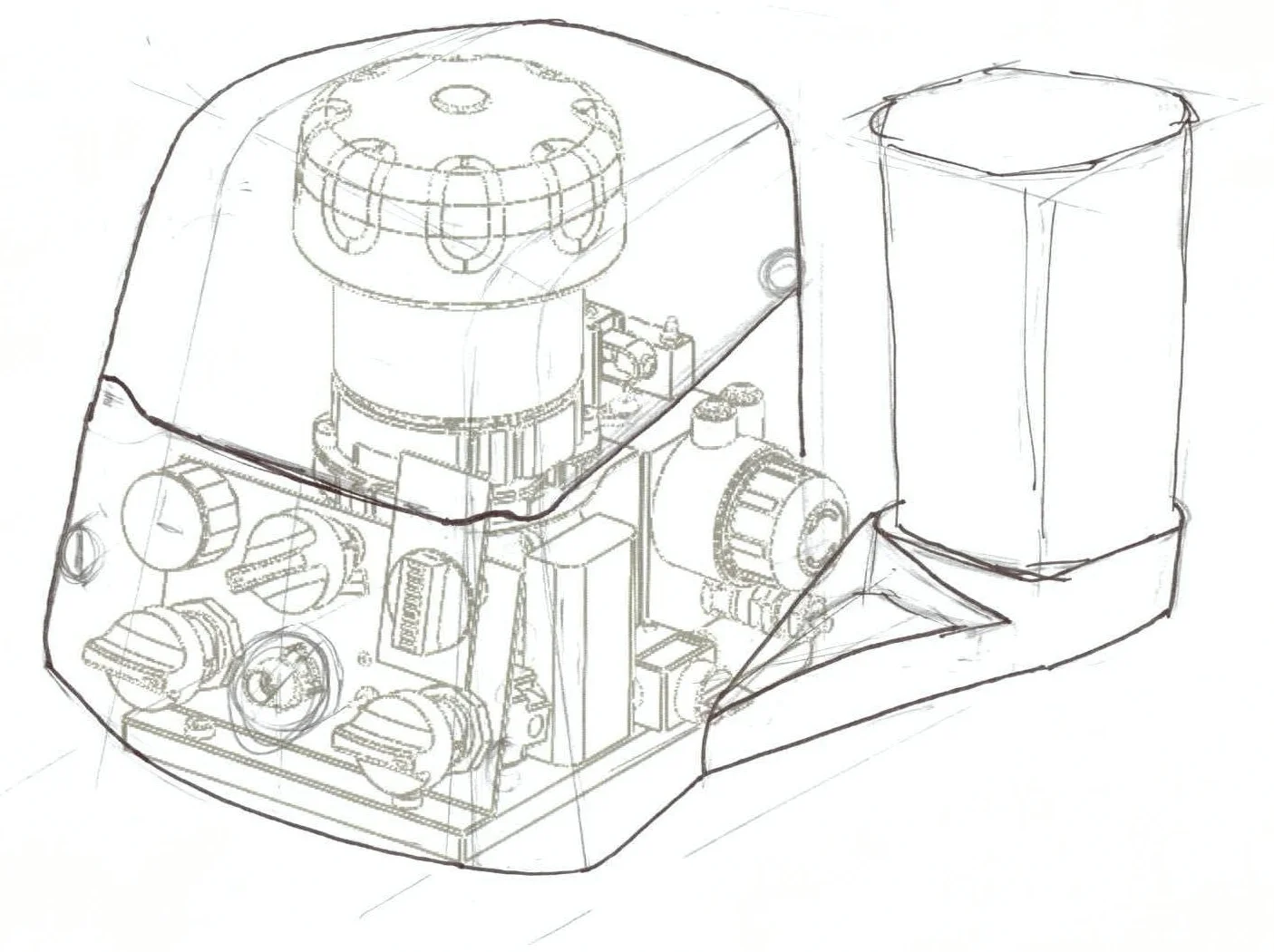

Early Outer Casing design ideas

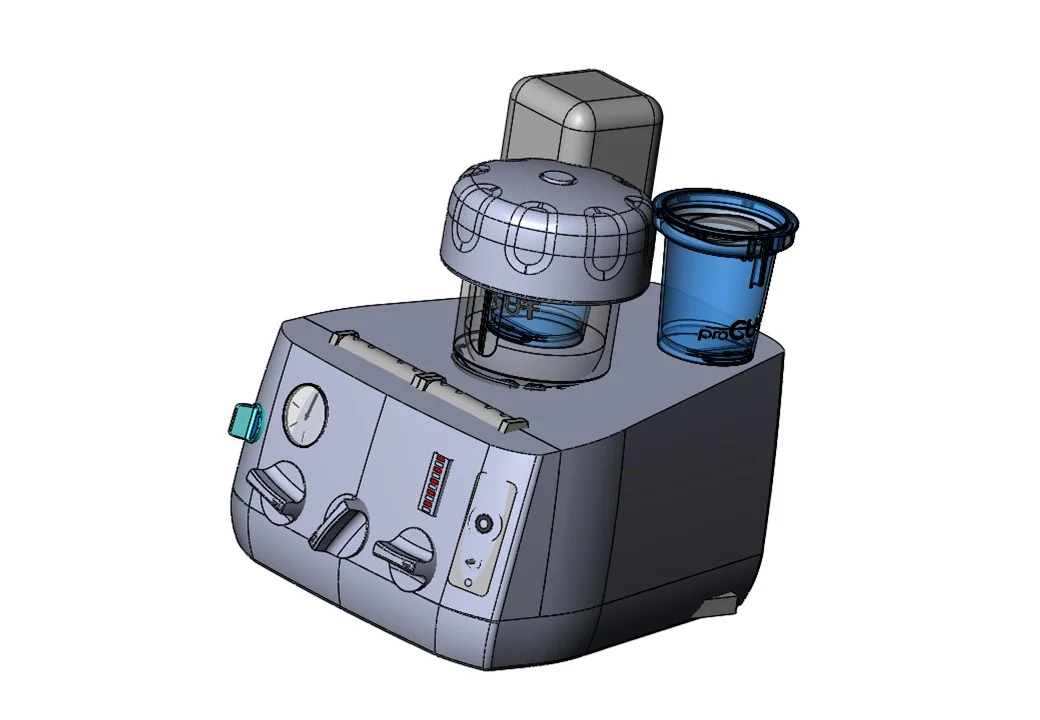

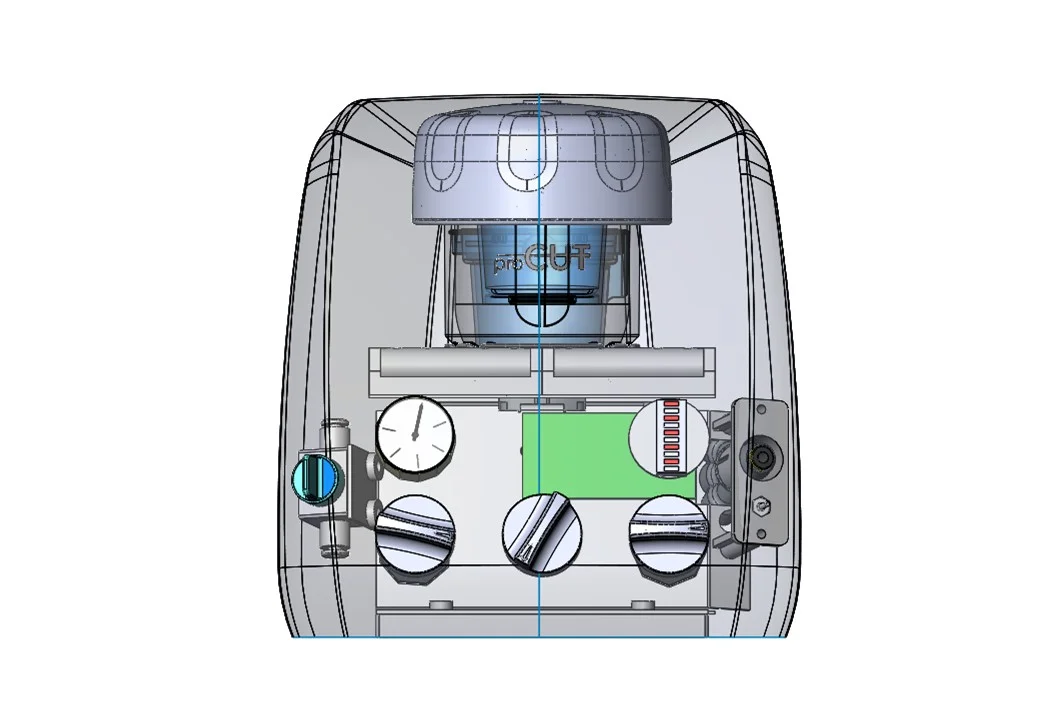

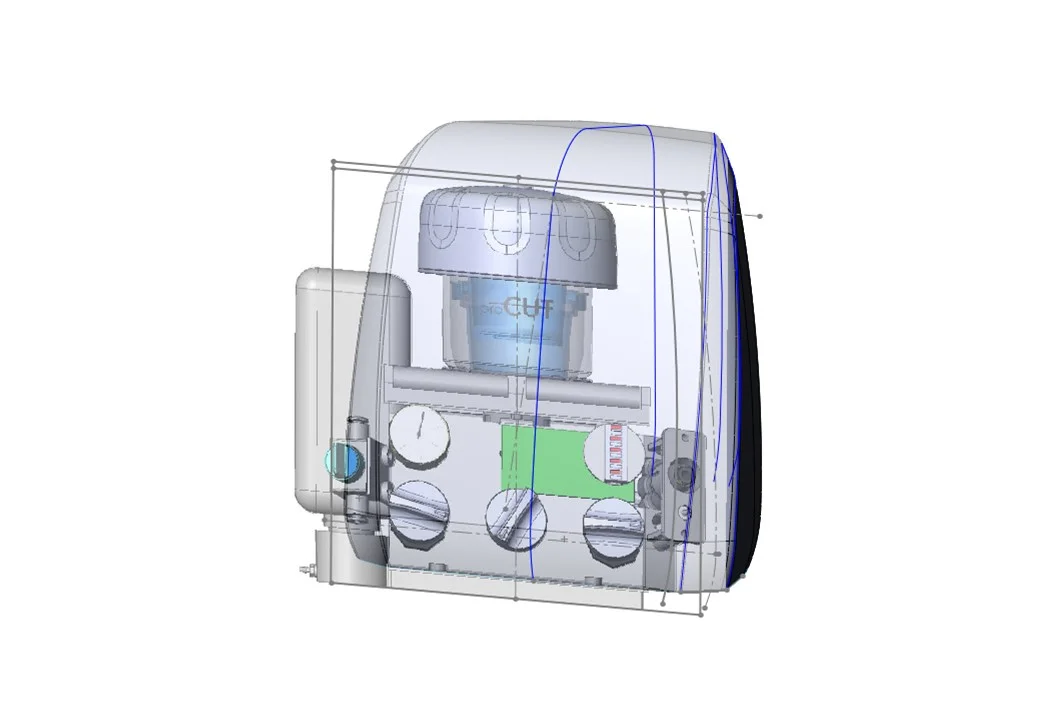

Further casing design & layout optimising

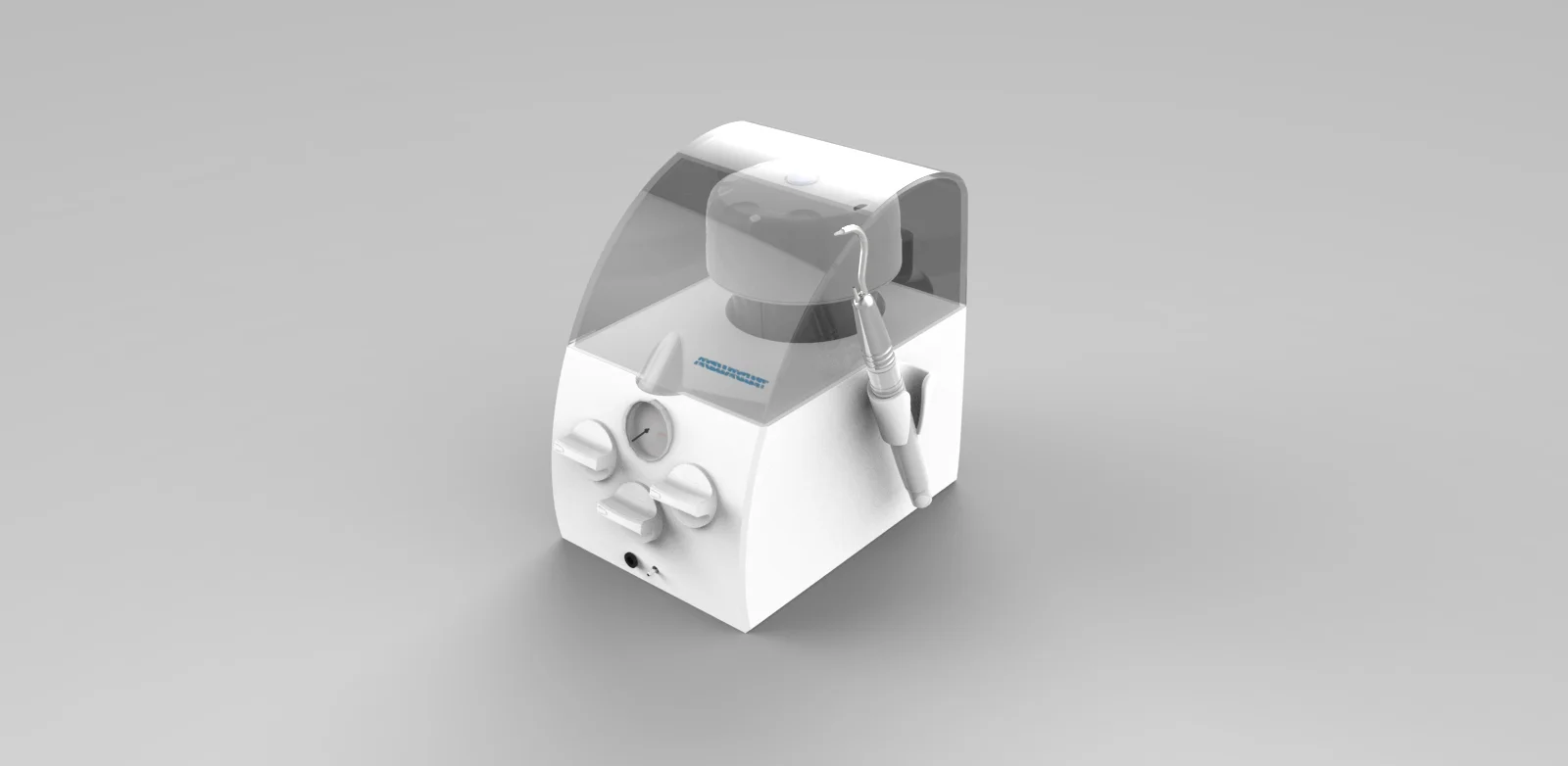

Near final renders

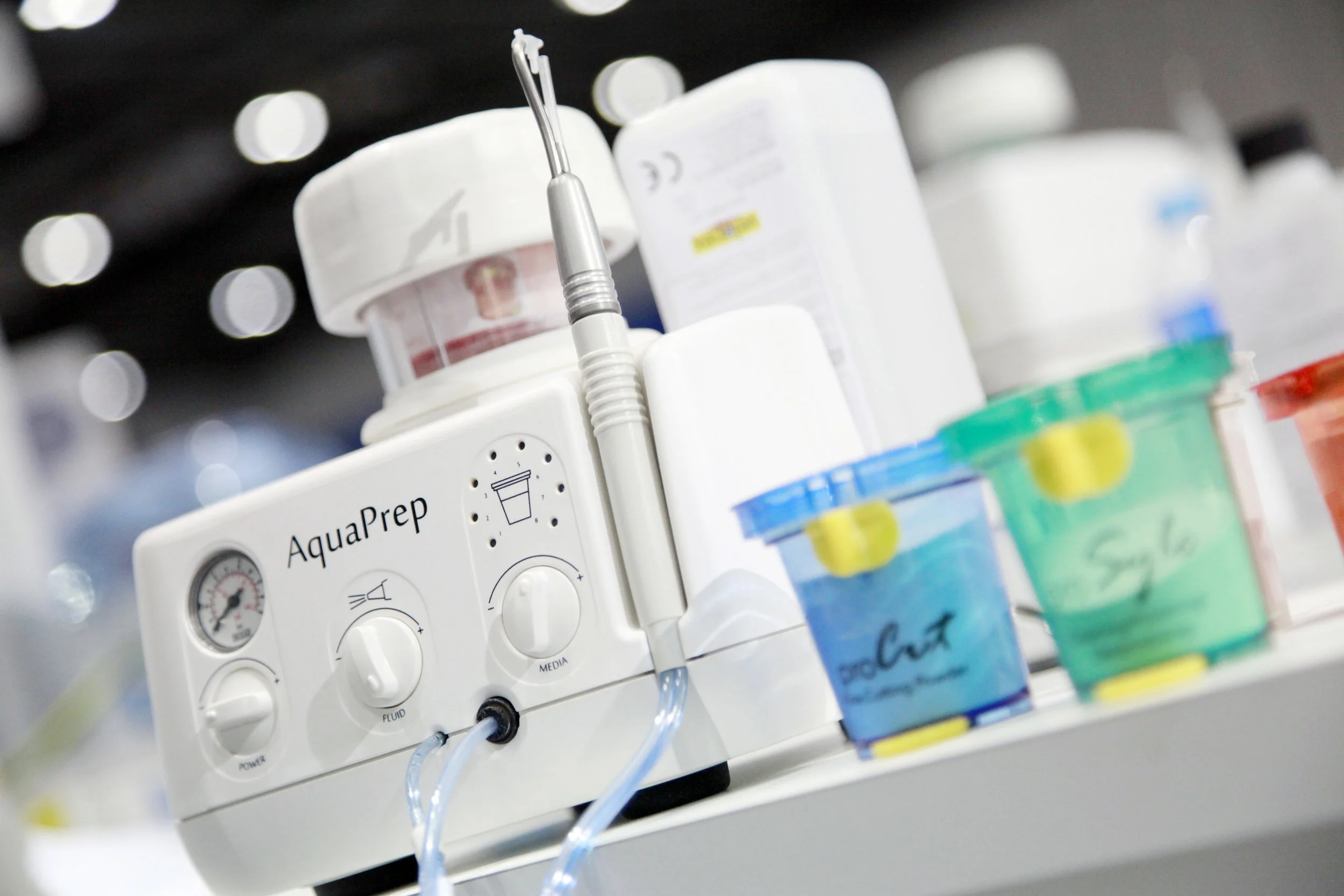

Functional prototype presented at BDIA SHOWCASE 2017

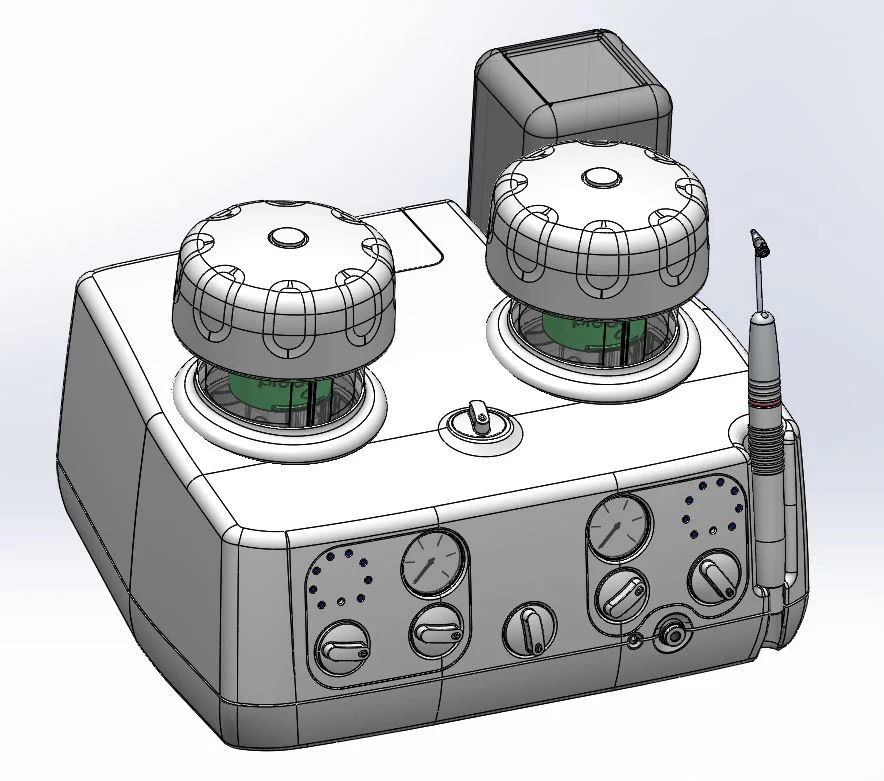

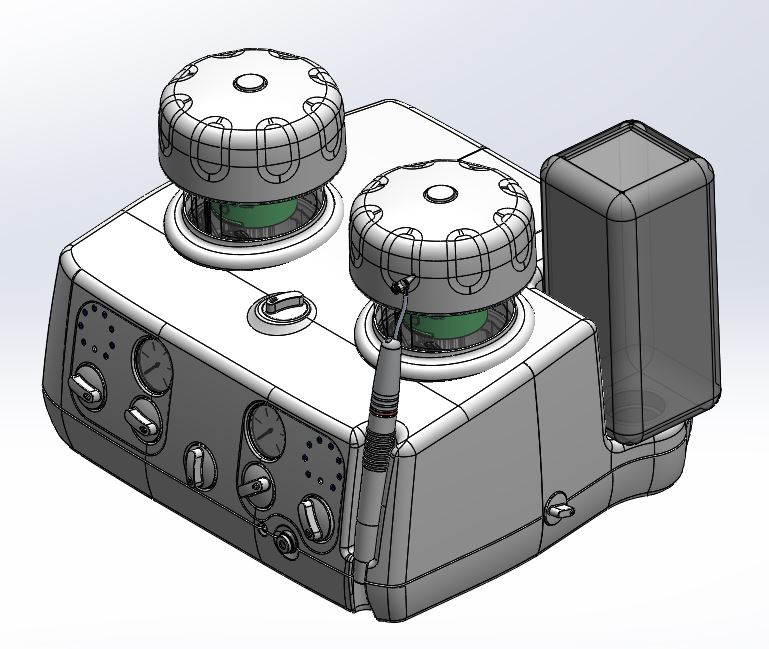

Variation of the machine created based on user feedback
